ROOF LANTERNS - ENGINEERED FOR PERFORMANCE
The Brett Martin Roof Lantern is a modern, double-glazed skylight designed to bring natural light into residential and commercial spaces. Featuring a sleek, thermally broken powder-coated aluminium frame and a laminated inner glass pane for enhanced safety, it offers both style and durability. Quick and easy to install on flat roofs, it’s ideal for brightening open-plan living areas and home extensions. With rapid delivery options available, you can transform your space into a bright and inviting environment in no time.
KEY FEATURES OF ROOF LANTERNS
Wide Range of Sizes
Modern and Stylish design with a wide range of sizes, with 9 standard sizes
Elegant Finish and Design
Aluminium frame powder coated to RAL 7016 grey externally and RAL 9010 white internally
Simple installation
Designed for simple mounting direct to a weathered builder’s upstand.
Glass Options
Choice of clear self-clean or blue solar-control self-clean glass as standard. Special glass options also available.
KEY BENEFITS OF ROOF LANTERNS
Stylish Design
Stylish glass rooflight with slender aluminium frame offering clean sight lines and neat junctions
Rapid Instalation
Designed for rapid installation with no silicone sealant other than to seal between roof and rooflight
High Thermal Efficiency
Highly thermally efficient with thermally broken frame and Low-E double glazing
Safety as a Standard
Uniquely offering safety as standard thanks to a laminated inner glass pane protecting those below from falling glass in the event of accidental breakage

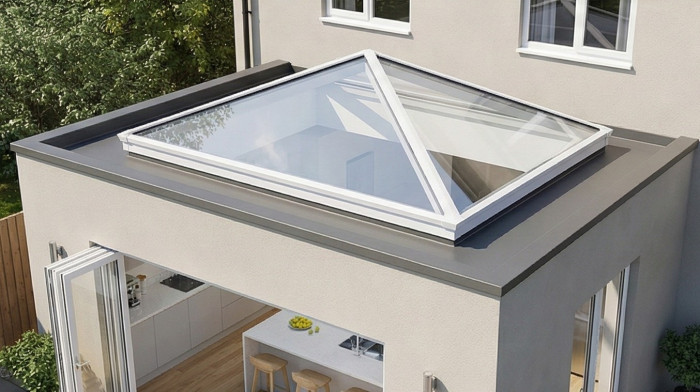

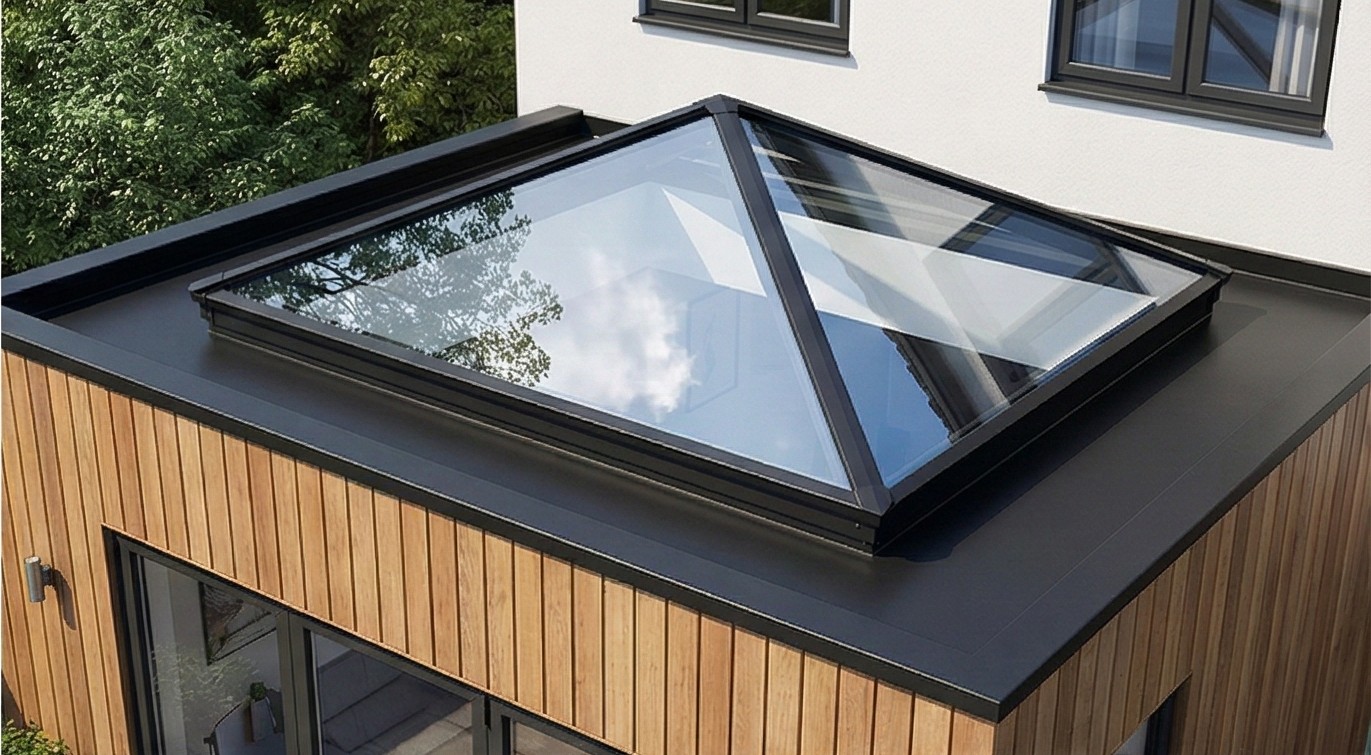

Brett Martin Roof Lantern Pyramid
This slim and elegant pyramid glass rooflight makes an architectural statement and floods interior spaces with natural daylight. Designed for quick and easy installation, it makes a stunning addition to living and working spaces. Whether you are building a new extension or upgrading an existing space, this unit is built for long-term performance and visual impact.
The Brett Martin Roof Lantern is a modern, double-glazed skylight designed to bring natural light into residential and commercial spaces. Featuring a sleek, thermally broken powder-coated aluminium frame and a laminated inner glass pane for enhanced safety, it offers both style and durability. Quick and easy to install on flat roofs, it’s ideal for brightening open-plan living areas and home extensions. With rapid delivery options available, you can transform your space into a bright and inviting environment in no time.
Product Overview
This slim and elegant pyramid glass rooflight makes an architectural statement and floods interior spaces with natural daylight. Designed for quick and easy installation, it makes a stunning addition to living and working spaces. Whether you are building a new extension or upgrading an existing space, this unit is built for long-term performance and visual impact.
Key Features & Benefits
Stylish Design: Features a stylish and slender frame with clean sight lines and neat junctions for a contemporary 4-pane glazing look.
Maximised Daylight: The slim frame ensures minimal obstruction, allowing sunlight to pour into your room.
Self-Cleaning Glass as Standard: All units come equipped with advanced self-cleaning technology, ensuring your view remains crisp with minimal maintenance.
Quick & Easy Installation: Designed for rapid and straightforward fitting.
Made in the UK: Manufactured locally to the highest standards, ensuring quality and reliability.
Rapid Delivery: Standard sizes and specifications are typically delivered in just 3-5 days.
Peace of Mind: Comes with a 10-year warranty available for your assurance.
Technical Specifications
Customize your lantern to match your property’s style and requirements.
Size Options
Standard Sizes: 4 standard sizes available from 1000mm x 1000mm up to 2500mm x 2500mm.
Bespoke Sizes: Custom sizes are available on request to fit unique roof openings.
Powder Coat Finishes
Choose from a range of high-quality powder-coated finishes to complement your interior and exterior design.
| External Finish | Internal Finish |
| RAL 7016 Grey | RAL 9010 White |
| RAL 7016 Grey | |
| RAL 9005 Black | RAL 9010 White |
| RAL 9005 Black | |
| RAL 9010 White | RAL 9010 White |
Explore Our Full Range
Spec
- Size 1000mm x 1000mm
- Glass Spec self clean, double glazing laminated inner
- Total weight 50 KG
PDF Resources
The Pyramid Roof Lantern is engineered for simple and secure installation on flat or low-pitch roofs, mounting directly onto a fully weathered and insulated builder’s upstand.
Installation guidelines
- Install on a fully insulated and weathered builder’s upstand. The roof covering must dress up the sides and over the top of the upstand, providing a smooth, level bearing surface.
- External upstand dimensions should match the ordered rooflight size (rooflight size = external upstand size) with a tolerance of +20mm / −0mm.
- Minimum upstand height: 150mm.
- Minimum upstand width: 85mm to provide a suitable fixing surface.
- Suitable for upstand pitches from 0° to 5°; for best aesthetics, a 0° (level) upstand is recommended to avoid a “lopsided” appearance.
- These rooflights should be considered FRAGILE. A risk assessment must be carried out to define the measures required to prevent falls through the rooflight, in accordance with CDM regulations and Rooflight Association guidance.
Laminated vs toughened inner panes
- Toughened inner pane supplied as standard.
- Laminated inner pane option improves protection against falling glass in the event of accidental breakage.
- Where blinds or other shading devices are installed beneath the rooflight, they should be positioned as far from the glass as practicable and preferably in light colours to reduce the risk of thermal stress fracture in laminated glass.
For a full step-by-step installation guide for the Roof Lantern and Pyramid variants, watch the video below or download the installation guide
How Your Pyramid Roof Lantern Is Delivered
You can expect your order of the following sizes to be delivered within 3 to 5 working days:
1000x1000 1500x1500 2000x2000 2500x2500Any other sizes not listed above will be non-standard and therefore handled by the Bespoke team, with a delivery time of 15-17 days.
- Delivered kerbside by the Brett Martin transport fleet.
- Glass units and frame arrive together on a secure A-frame.
- Driver can assist with unloading where safe to do so, but additional labour may be required depending on unit size.
- Sacrificial foam runners and protective packaging help protect the glass during unloading.
- The A-frame is removed by the driver after delivery.
Important: Please ensure someone is available on the day of delivery to help unload the roof lantern from the lorry and that safe access is provided.
Delivery Times
Standard clear toughened or clear laminated glass sizes (1000×1000, 1500×1500, 2000×2000) are typically delivered within 3–5 working days.
Blue solar-control glass (toughened or laminated) is usually delivered within around 15 working days.
2500×2500mm sizes and all bespoke sizes are generally delivered within approximately 15 working days.
Glass Options
We offer the following self-cleaning glass options:
- Clear Self-Clean
- Blue Solar-Control Self-Clean
- Clear Neutral Laminated (where laminated glass is specified)
- Other specialist specifications available on request
Delivery Cost
Delivery is free to all UK mainland addresses.
For non-mainland and remote postcodes, please contact us for a delivery quote.
Excluded Postcodes
We currently do not deliver to the following areas without prior arrangement:
Scotland, Northern Ireland, Channel Islands & Remote Areas
HS, IM, IV, ZE, BT, KA27–28, KWA, PA20–49, PH17–50, PO30–40, TR21–25, LL58–78
Contact our team to check if delivery to your area can be arranged.
